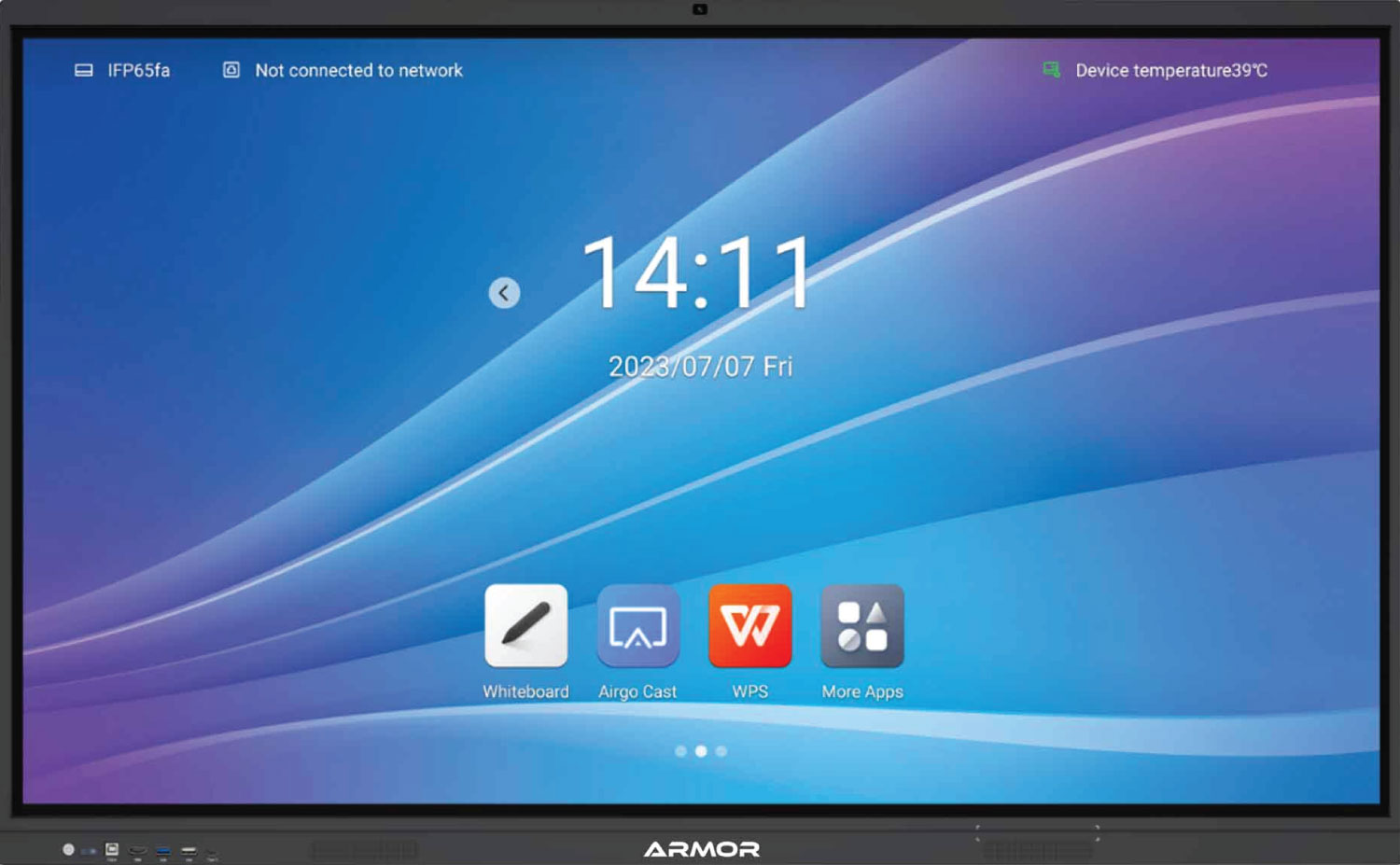

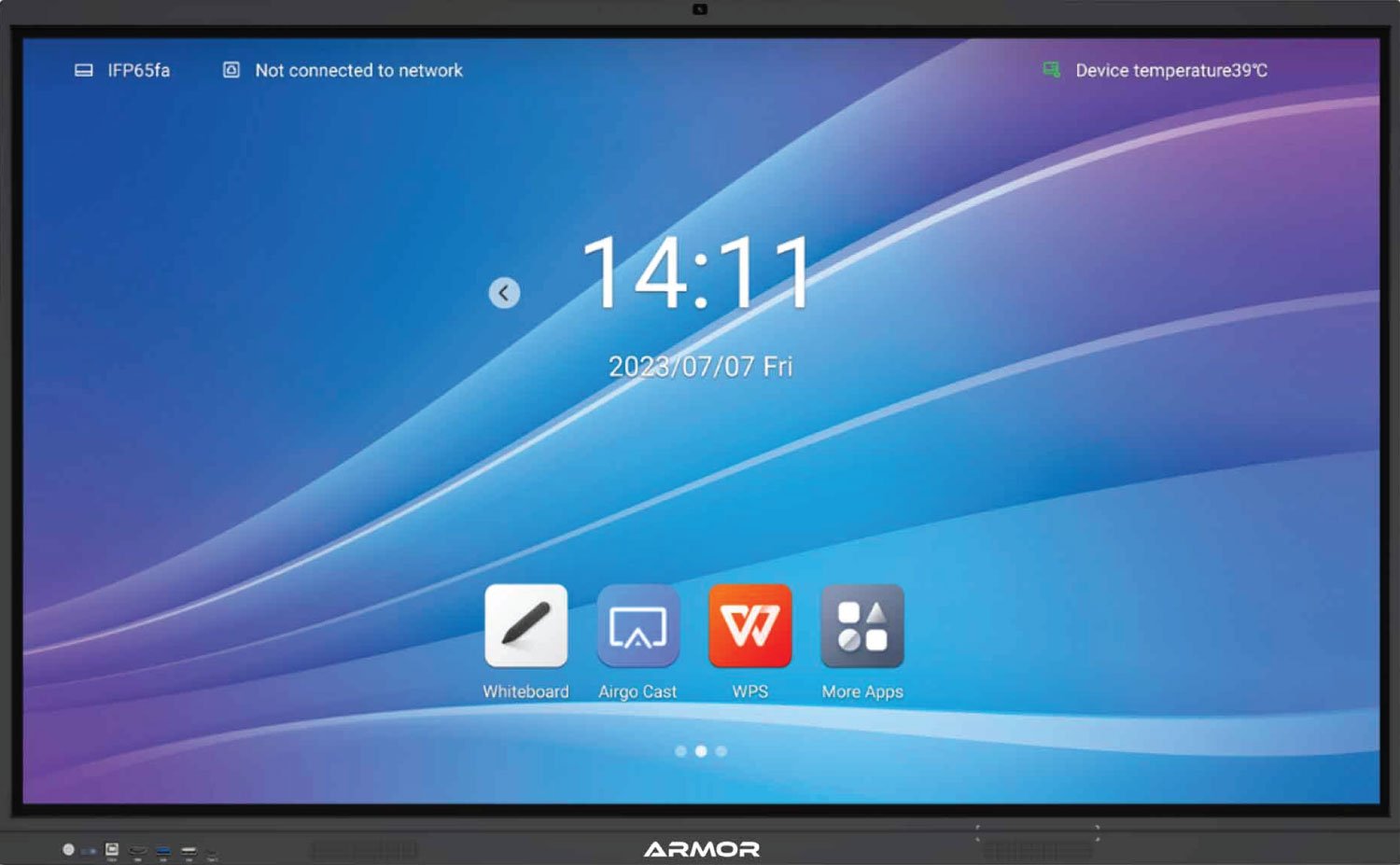

The ARMOR ARM8605-Prime 86” Interactive Display features 4K UHD IPS visuals, Android 14, and smooth 20-point touch for easy collaboration. With a built-in 4K camera, powerful speakers, and versatile connectivity, it’s perfect for classrooms and meeting rooms.
| Brand | ARMOR |
| Model | ARM8605-Prime |
| Country of Origin | USA |
| Country of Assemble | China |
| Diagonal Size | 86 inch |
| Effective Display Area | 1895(H) × 1066(V) |
| Display Ratio | 16:9 |
| Brightness | 500 cd/m² |
| Contrast Ratio | 6000:1 |
| Refresh Rate | 60 Hz |
| Panel Type | IPS |
| Screen Type | Direct-lit LED |
| Color Depth | 10 bit, 1.07 Billion Colors |
| Viewing Angle | 178° (V) / 178° (H) |
| Resolution | 3840 × 2160 (4K UHD) |
| Audio Output Power | Speaker 16W × 2 = 32W |
| LAN IN | 1 |
| AV IN | 1 |
| HDMI 2.0 (CEC) | 2 |
| RS-232 | 1 |
| USB 3.0 | 1 |
| USB 2.0 | 1 |
| AV OUT | 1 |
| Earphone | 1 |
| Coaxial (SPDIF) | 1 |
| TOUCH OUT | 1 |
| USB 3.0 | 3 |
| HDMI 2.0 | 1 |
| USB TOUCH | 1 |
| Type-C | 1 |
| CPU | 8 core ARM Cortex-A55 |
| GPU | Mali G52 Multicore 2 |
| Android | Android 14 |
| RAM | 8 GB |
| ROM | 128 GB |
| Built-In Camera: | 1080P/12PM 4K Camera, Minimum 12MP, f/2.4 Aperture Camera system, Frame Rate 4K@30fps, Locate the sound source and trace intelligently, Screen Share facility, 120-degree wide angle lens, Auto focus. |
| Operating System Support | Windows 7 / 8 / 10 / 11 / XP / Linux / Mac / Android |
| WIFI | 802.11 a/b/g/n/ac/ax |
| LAN | Gigabit LAN (10/100/1G Ethernet) |
| Bluetooth | 5 |
| Transmission Screen WIFI | 5G |
| Power Consumption | ≤ 410W |
| Power Type | Built-In Power |
| External Camera | Yes |
| Lifetime | 50000 hours |
| Net Weight | 66 KG |
| Gross Weight | 82 KG |
| Touch Technology | Capacitive, 20 points touch |
| Multi Touch | 40 points (Windows) |
| Protection Glass Thickness | 4T (Anti-Glare) Protection |
| Pen | x2 |
| Wall Mount | x1 |
| Power Cable | x1 |
| HDMI Cable | x1 |
| Touch Cable | x1 |
| Type-C Cable | x1 |
| Wi-Fi Module | Built-in 5G |
| Certification | CE, FCC, RoHS |
| Warranty | 3 Years Full warranty |
| Operating System | Core-i5 13th Gen, RAM-16 GB, 512 GB SSD Windows |
Our team of product experts can help you find the best solution for your company.
