| Genaral | Brand | ARMOR |
| Model | ARM500WU | |
| County of Origin | USA | |
| County of Manufacturer | China | |
| Brightness (Ansi Lumen) | 5000 | |
| Resolution | WUXGA (1920 x 1200) | |
| Light source Life time | Full Normal / Normal mode | 20000hrs |
| ECO1 mode | 30000hrs | |
| Projection Lens | F | 1.6~1.76 |
| f | 19.158~23.018mm | |
| Zoom/Focus | Manual | |
| Throw Ratio | 1.37~1.65:1 | |
| Zoom Ratio | 1.2x optics | |
| Screen size | 30-300ย inch | |
| CR | Contrast Ratio | 3000,000:1 |
| AR | Aspect Ratio | 16:10 (Standard)/4:3(Compatible) |

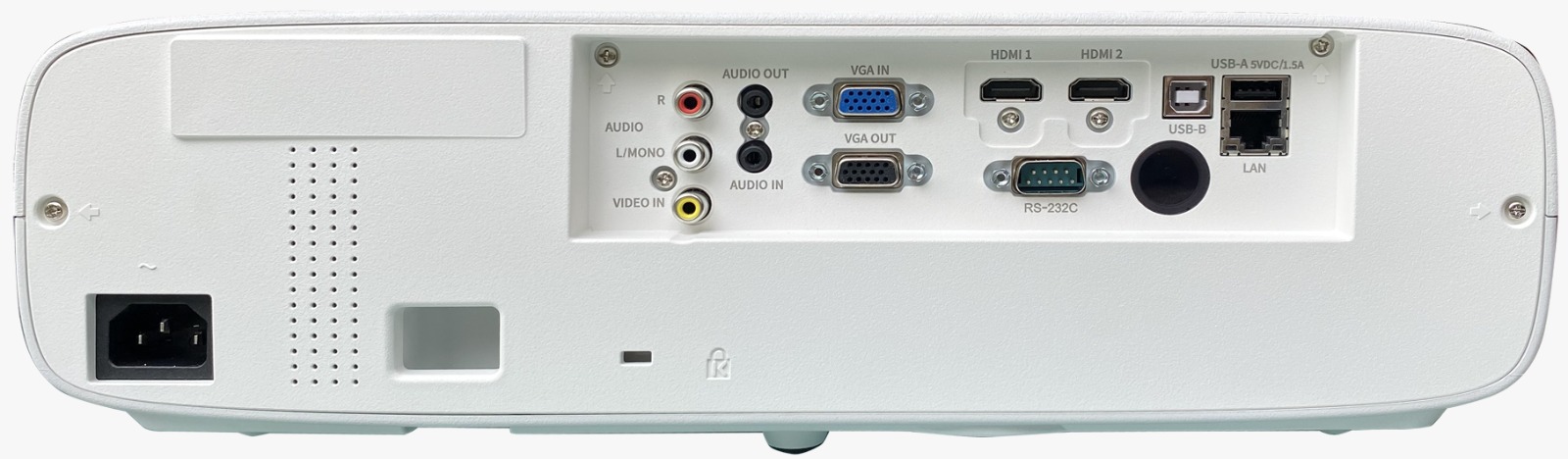

| Terminal(Input port) | VGA | *1 |
| HDMI | *2 | |
| Video | *1 | |
| Audio in ๏ผmini jack,3.5mm๏ผ |
*1 | |
| Audio in (RCAร2) <Audio L/R> | *1 | |
| USB-A | *1 | |
| USB-B | *1(Display) | |
| RJ45 | *1(Display) | |
| Terminal(Output port) | VGA | *1 |
| Audio out ๏ผmini-jack,3.5mm๏ผ |
*1 | |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) | |
| USB-B | *1 | |
| LAN | *1 | |
| Audio | Speaker | 16W*1 |
| Power Consumption | Power Requeirements | 100~240V@ 50/60Hz |
| ECO Standby Mode Power Consumption |
<0.5W | |
| Temp.&Humidity | Operating Temp. | 5 to 40 deg.C |
| Operating Thumidity. | 20-80% | |
| Storage Temp. | ย -10 to 50ยฐC | |
| Storage Thumidity. | 10-85% | |
| High altitude | 1700-3000m | |
| Keystone | Keystone Correction (Lens@center) |
V: ยฑ30ยฐ H๏ผยฑ30ยฐ Pincushion/Barrel Correction 4 corner 6 Corner Geometry correction Grid image tune |
| OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi |
| LAN Control | LAN Control-RoomView (Crestron) | Yes |
| LAN Control– AMX Discovery |
Yes | |
| LAN Control– PJ Link |
Yes | |
| Scanning Frequency | H-Synch Range | 15~100KHz |
| V-Synch Range | 24~85Hz | |
| Display Resolution | Computer Signal Input | VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@3 0Hz |
| Video Signal Input | 480i, 480p, 576i, 576p, 720p, 1080i and 1080p |
|
| SW setting | Auto Setup | INPUT SEARCH,AUTO PC,Auto Keystone |
| Blank | Yes | |
| Suspend | Yes (5miniutes no singnal as default) |
|
| Picture mode | Dynamic,Standard,Cinema, Colorboard,Blackboard(Green) | |
| Cooling time | 5s | |
| Closed caption | Yes | |
| Auto Ceiling | Yes | |
| D-Zoom | 1~19 | |
| Dimension & Weight | MAX Dimensions (WxDxH mm) |
390*294*127 |
| Net. Weight (KG) | 5Kg | |
| Packaging Box Dimensions (WxDxH mm) | 492*443*239 | |
| Gross. Weight (KG) | ~6.5Kg | |
| Accessory | Manual Languages | Chinese,English |
| Standard Accessaries | Power cordย Remote control & RC Battery |
