Armor ARM020 Indoor LED Video Wall

Key Feature:

  • Pixel – 5MD Triad LED with p2
  • Module Resolution – 160*80 dots
  • Module Dimention – 320*160mm
  • Screen Size – 12.598ftx4.724ft
  • Contrast Ratio – 3000:1
  • Refresh rate – 3840Hz
  • Module Parameter
    Pixel SMD Triad LED with   P2
    Pixel Pitch 2.00mm
    Pixel configuration 1R1G1B
    Module resolution 160*80 dots
    Pixel Density 250000 dots/m²
    Module Dimension 320*160mm
    Cabinet Parameters
    Cabinet size 640*480*65mm
    Cabinet Resolution(WXH) 320X240
    Cabinet Flatness 0.125 mm
    Pixel Density 250000 dots/m2
    Cabinet Construction Die-casting aluminum
    Weight 6.5 kg/pcs
    Maintenance Front-Access
    Screen Parameters
    Screen size 12.598ftx4.724ft
    Brightness ≥600 nits
    Contrast Ratio 3000:1
    Color temperature 3000-10000 K
    Grey Level 16 bit
    Color Uniformity ≤ ± 0.003Cx, Cy
    Refresh Rate ≥3840Hz
    Frame frequency ≥60Hz
    LED Life Time 100,000 Hours
    Brightness Uniformity ≥ 97%
    Display Color 275 trillion
    Input power 110~220 VAC ± 15% watts
    Working Temperature – 10°C ~ 40 °C
    Working Humidity 10%~80% RH
    Viewing angle (H/V) Horizontal: 160, Vertical:160
    Average Power Consumption ≤150w/㎡

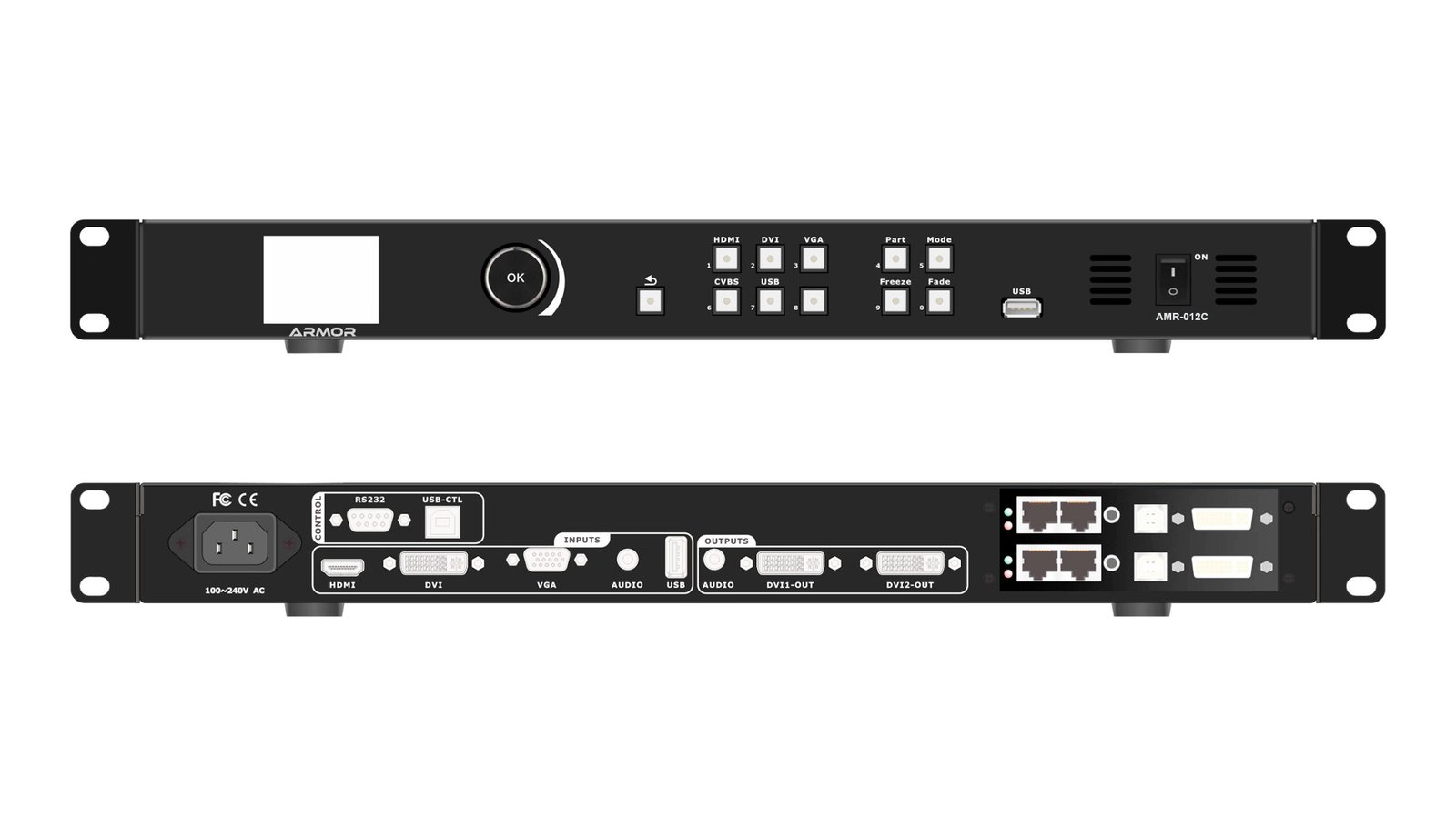

    Armor LED Controller AMR-012C
    Loading capacity 4 million pixels
    Input -1-ch HDMI, 1-ch DVI, 1-ch DP, Audio in.
    Output 4x Gigabit Ethernet,4ch, 1ch DVI, Audio out
    Brightness Control Automatic/manual
    Control Connectors RS232,USB-B
    Input resolution 1920×1080@60Hz up to 4096×2160@60Hz
    Refresh Rate 3840 Hz
    Frame Frequency 60 Hz
    Power Input AC 200-240V
    Module Parameter
    Pixel SMD Triad LED with   P2
    Pixel Pitch 2.00mm
    Pixel configuration 1R1G1B
    Module resolution 160*80 dots
    Pixel Density 250000 dots/m²
    Module Dimension 320*160mm
    Cabinet Parameters
    Cabinet size 640*480*65mm
    Cabinet Resolution(WXH) 320X240
    Cabinet Flatness 0.125 mm
    Pixel Density 250000 dots/m2
    Cabinet Construction Die-casting aluminum
    Weight 6.5 kg/pcs
    Maintenance Front-Access
    Screen Parameters
    Screen size 12.598ftx4.724ft
    Brightness ≥600 nits
    Contrast Ratio 3000:1
    Color temperature 3000-10000 K
    Grey Level 16 bit
    Color Uniformity ≤ ± 0.003Cx, Cy
    Refresh Rate ≥3840Hz
    Frame frequency ≥60Hz
    LED Life Time 100,000 Hours
    Brightness Uniformity ≥ 97%
    Display Color 275 trillion
    Input power 110~220 VAC ± 15% watts
    Working Temperature – 10°C ~ 40 °C
    Working Humidity 10%~80% RH
    Viewing angle (H/V) Horizontal: 160, Vertical:160
    Average Power Consumption ≤150w/㎡
    Armor LED Controller AMR-012C
    Loading capacity 4 million pixels
    Input -1-ch HDMI, 1-ch DVI, 1-ch DP, Audio in.
    Output 4x Gigabit Ethernet,4ch, 1ch DVI, Audio out
    Brightness Control Automatic/manual
    Control Connectors RS232,USB-B
    Input resolution 1920×1080@60Hz up to 4096×2160@60Hz
    Refresh Rate 3840 Hz
    Frame Frequency 60 Hz
    Power Input AC 200-240V
