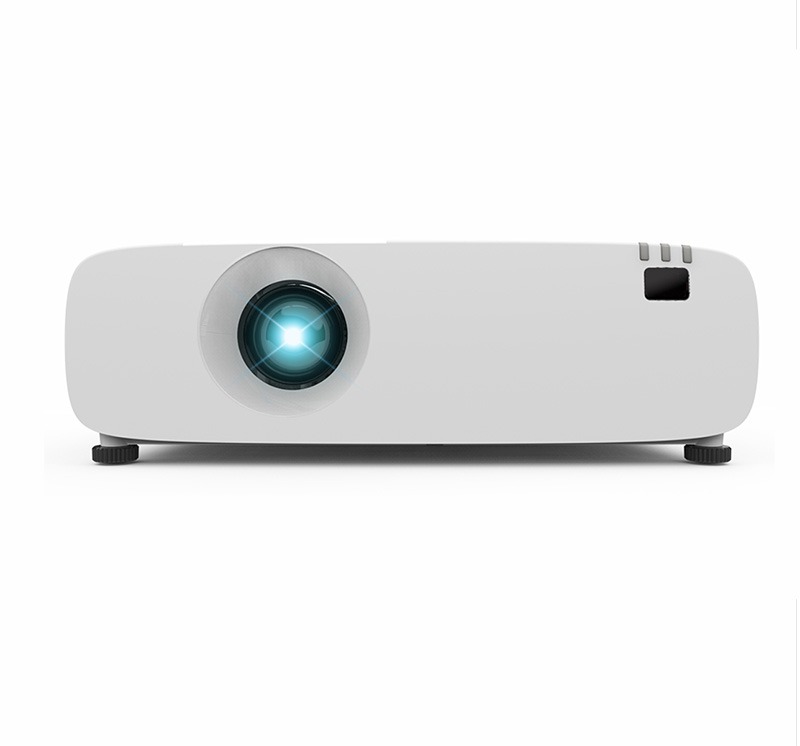

The ARM XGA 5000 Lumens LCD Projector is a high-brightness professional projector designed for large classrooms, conference rooms, auditoriums, and business presentations. With 5000 ANSI lumens brightness and XGA (1024×768) native resolution, it delivers clear, vibrant, and highly visible images even in bright environments. The projector features an advanced 25000:1 contrast ratio with IRIS technology, ensuring deeper blacks and improved image detail for presentations, videos, and multimedia content.
This projector uses 3×0.63″ LCD display panels combined with advanced image processing powered by the Pixelworks PWC890 main IC and Sony CXD3551 + CXA3828 chipsets. This configuration enhances signal processing, color accuracy, and overall visual performance, making it ideal for professional display applications.
Equipped with a Signify 240W Infinity lamp, the projector delivers powerful brightness and reliable operation with extended lifespan:
Up to 10,000 hours in Normal mode
Up to 20,000 hours in ECO mode
Multiple lamp modes (Boost, Normal, ECO1, ECO2) allow users to adjust brightness and power consumption depending on the environment.
The projector features a manual zoom and focus lens with 1.2× optical zoom, allowing flexible installation and easy image adjustment. With a throw ratio of 1.48–1.78:1, it can project a 70-inch screen from around 2.1 meters. It supports projection sizes from 30 inches up to 300 inches, making it suitable for both small rooms and large presentation halls.
The projector supports multiple input and output interfaces for wide device compatibility:
2× HDMI inputs
1× VGA input and 1× VGA output
Video input
USB-A and USB-B ports
RJ45 LAN port
Audio inputs (3.5mm mini jack and RCA L/R)
Audio output (3.5mm mini jack)
RS232 control interface
These connectivity options allow seamless integration with computers, media players, AV systems, and network environments.
The projector supports professional network management features including:
Crestron RoomView LAN control
AMX Discovery
PJLink compatibility
These features allow IT administrators to remotely monitor and manage the projector within enterprise or educational AV networks.
To ensure easy setup and operation, the projector includes:
Vertical and horizontal keystone correction (±30°)
4-corner image adjustment
Auto input search and auto PC setup
Auto keystone correction
Digital zoom with 33 adjustable steps
Multiple picture modes: Dynamic, Standard, Cinema, Blackboard, and Colorboard
Closed caption support
Customizable startup countdown and signal power-on
The projector includes a 16W built-in speaker, providing clear sound for presentations and classroom use without requiring external speakers. Despite its high brightness, it maintains quiet operation:
38 dB in Normal mode
34 dB in ECO1 mode
28 dB in ECO2 mode
Designed for professional environments, the projector includes several security and maintenance features:
Password protection
Control panel lock
Kensington lock and security bar
ESD dust filter
Top lamp access and side filter access for easy maintenance
Dimensions: 345 × 261 × 99 mm
Weight: approximately 3.3 kg
The compact design makes it easy to install in classrooms, meeting rooms, or ceiling-mounted setups.
The projector comes with essential accessories for quick setup:
Power cord
HDMI cable
Remote control
Overall, the ARM 5000 Lumens XGA LCD Projector offers powerful brightness, advanced image processing, extensive connectivity, and professional network control, making it an excellent solution for business presentations, educational institutions, and large meeting spaces.
| Key parts | ||
| PJ Lens | F1.6×1.2 | |
| Light source | signify:240W Infinity(Lamp) | |
| Main IC | Piexelworks：PWC890 | |
| Sony IC | CXD3551+CXA3828 | |
| Brightness | ||
| ISO | Brightness (Marketing) ( Ansi Lumens ) |
5000 |
| Light source | Lamp:240W | |
| Overall Spec | ||
| Panel | Display Panel | 3×0.63” |
| Display Technology | Liquid Crystal Display | |
| Native Resolution | XGA (1024×768) | |
| Lamp | Lamp Consumption(W) | signify:240W Infinity(Lamp) |
| Lamp Lifetime(H) | 10000H(Normal) /20000H(ECO) | |
| Projection Lens |
Zoom/Focus | Manual |
| Throw Ratio | 70″@2.1m；1.48~1.78：1 | |
| F | F:1.6~1.76 | |
| f | f=19.158~23.018mm | |
| Zoom Ratio | 1.2x optics | |
| Screen size | 0.888~10.937m（30″~300″） | |
| CR | IRIS | *1 |
| Contrast Ratio(Min) | 25000:1 (w/IRIS) |
|
| Noise | Noise(dB)@1m | ECO1: 34dB ECO2：28dB Normal: 38dB |
| Uniformity | Uniformity(Actual Min) -JISX6911 |
80% |
| AR | Aspect Ratio | 4:3 (Standard)/16:9(Compatible) |
| Terminal(I/O port) | ||
| Input | VGA | *1 |
| HDMI | *2 | |
| Video | *1 | |
| Audio in （mini jack,3.5mm） |
*1 | |
| Audio in (RCA×2) <Audio L/R> |
*1 | |
| USB-A | *1 | |
| USB-B | *1(Display) | |
| RJ45 | *1(Display) | |
| YCbCr/Component | N/A | |
| S-Video | N/A | |
| Output | VGA | *1 |
| Audio out （mini-jack,3.5mm） |
*1 | |
| Control | RS232 | *1 |
| RJ45 | *1 (Control) | |
| USB-B | *1 | |
| LAN | *1 | |
| Other Interface | N/A | |
| General Spec | ||
| Audio | Speaker | 1*16W |
| Power Consumption |
Power Requeirements | 100~240V@ 50/60Hz |
| Power consumption (W) |
340 | |
| Power Consumption (ECO) |
150 | |
| ECO Standby Mode Power Consumption |
<0.5W | |
| Network standby Power Consumption |
<2W | |
| Cooling | Operating Temp. | 5℃~40℃(35~ ECO) |
| Store Temp. | -10℃~~50℃ | |
| Oparating Humidity | 20%~80% | |
| High altitude | 0 to 3000 m | |
| Mechanical Design | Security bar | Yes |
| Password protections | Yes | |
| Control Panel Lock | Yes | |
| Kenginston Lock | Yes | |
| Ventilation (In/Ex) | Side/Side | |
| Lamp access | Top | |
| Filter access | Side | |
| Dust filter | ESD filter | |
| Other Functions | ||
| Keystone | Keystone Correction | V: ±30°/ H：±30° 4 corner Correction |
| OSD | Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korea, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi |
| LAN Control | LAN Control-RoomView (Crestron) |
Yes |
| LAN Control-AMX Discovery | Yes | |
| LAN Control-PJ Link | Yes | |
| Scanning Frequency |
H-Synch Range | 15~100KHz |
| V-Synch Range | 48~85Hz | |
| Display Resolution |
Computer Signal Input | VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,Mac, 4K@30Hz |
| Video Signal Input | NTSC, NTSC4.43, PAL, SECAM, PAL-M, PAL-N, |
|
| SW setting | Auto Setup | INPUT SEARCH,AUTO PC, AUTO Keystone |
| Audio muting(Muting) | Yes | |
| Suspend | Yes(5miniutes no singnal as default) | |
| Picture mode | Dynamic、Standard、Cinema、 Blackboard、Colorboard |
|
| Lamp mode | Boost/Normal/ECO1/ECO2 | |
| Filter Cleaning Cycle | 500/1000/2000 hours | |
| Cooling time | 0S,60s,90s | |
| Closed caption | Yes | |
| Signal Power On | Yes | |
| Turn on countdown | Customized-(5S, 10S, 30S..) | |
| Auto Ceiling | Yes | |
| D-Zoom | 1~33 steps | |
| Dimension&Weight | ||
| MAX Dimensions (WxHxD mm) |
345*261*99 | |
| Net. Weight (KG) | ~3.3 | |
| Packaging Box Dimensions (WxHxD mm) |
442*368*195 | |
| Gross. Weight (KG) | 4.7 | |
| Accessory | ||
| Standard Accessaries | Power cord, HDMI cable, Remote control |
